ElekTek Premium Pendant Light Kit DIY 100mm Convex Ceiling Rose, Round Flex and Lamp Holder E27 Shade Ring Cord Grip

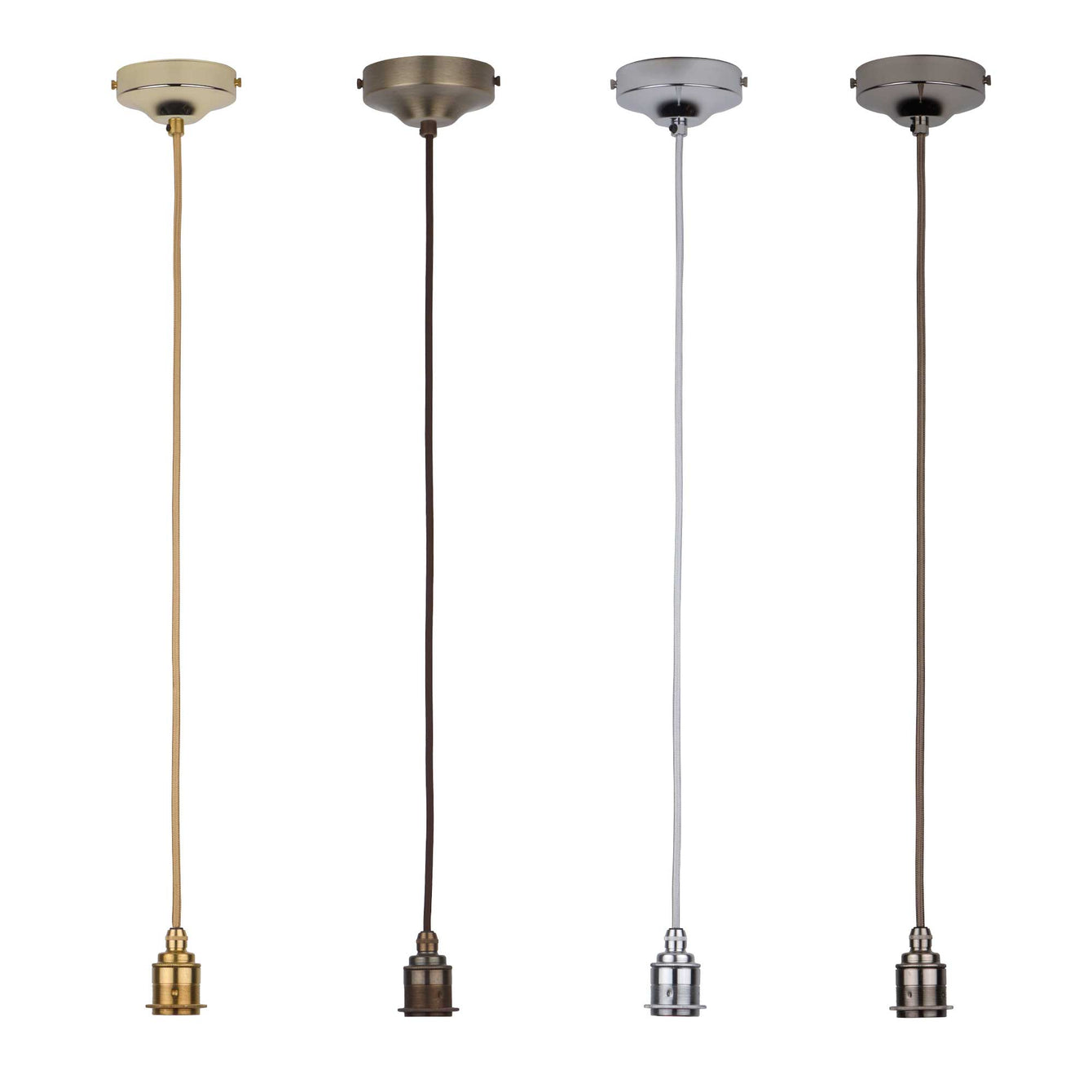

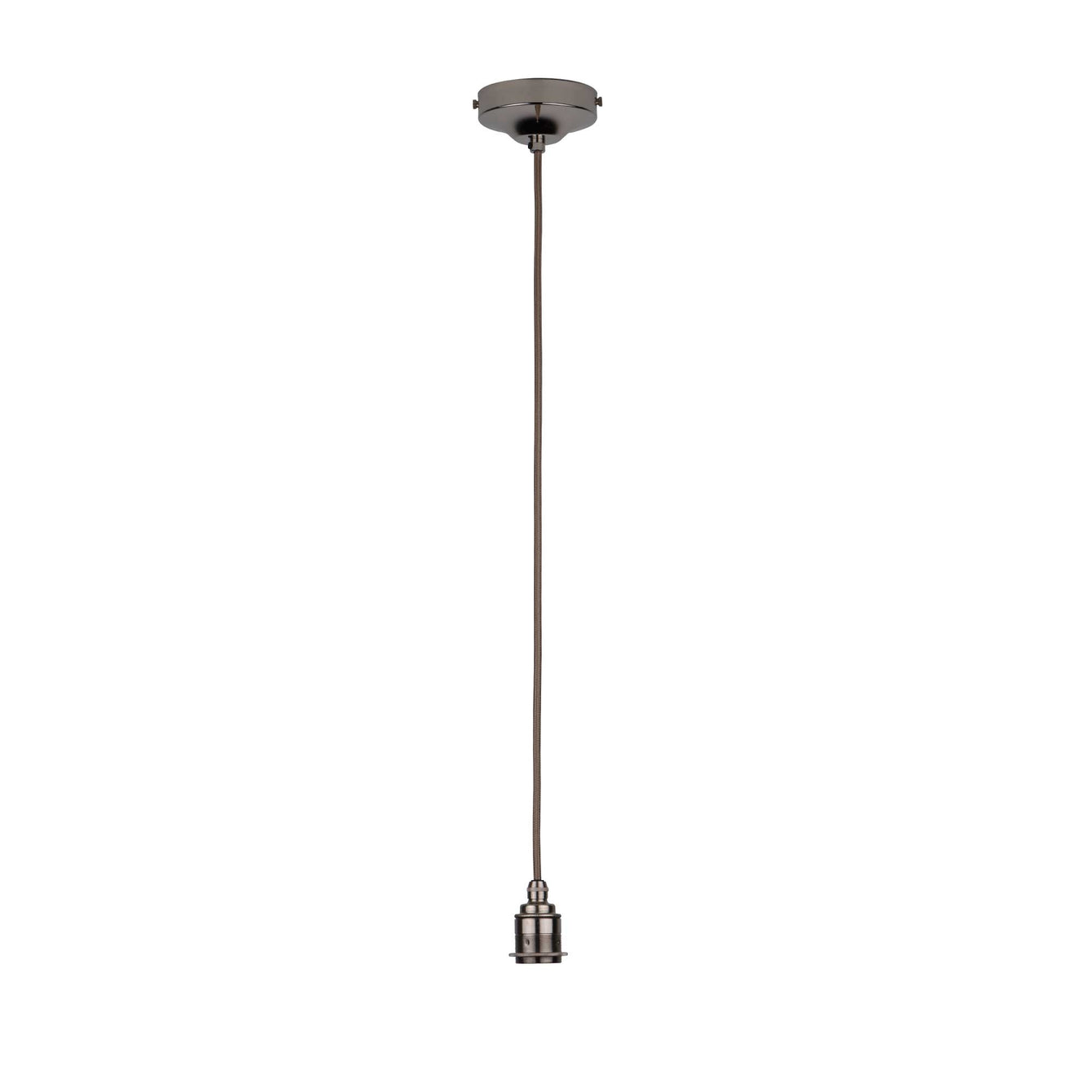

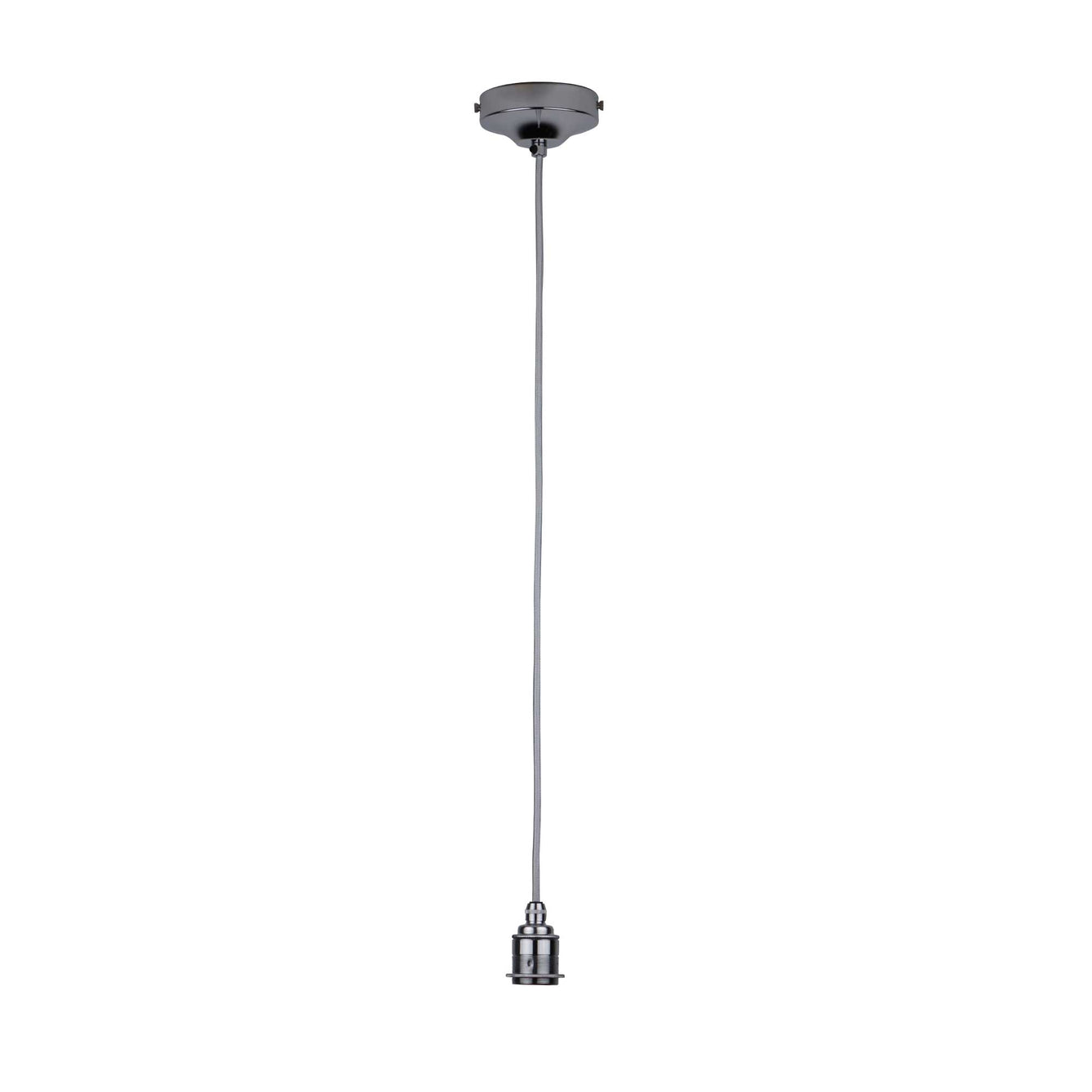

The ElekTek DIY pendant ceiling light kit contains everything you need to assemble a premium quality ceiling light with a pendant drop of 70cm.

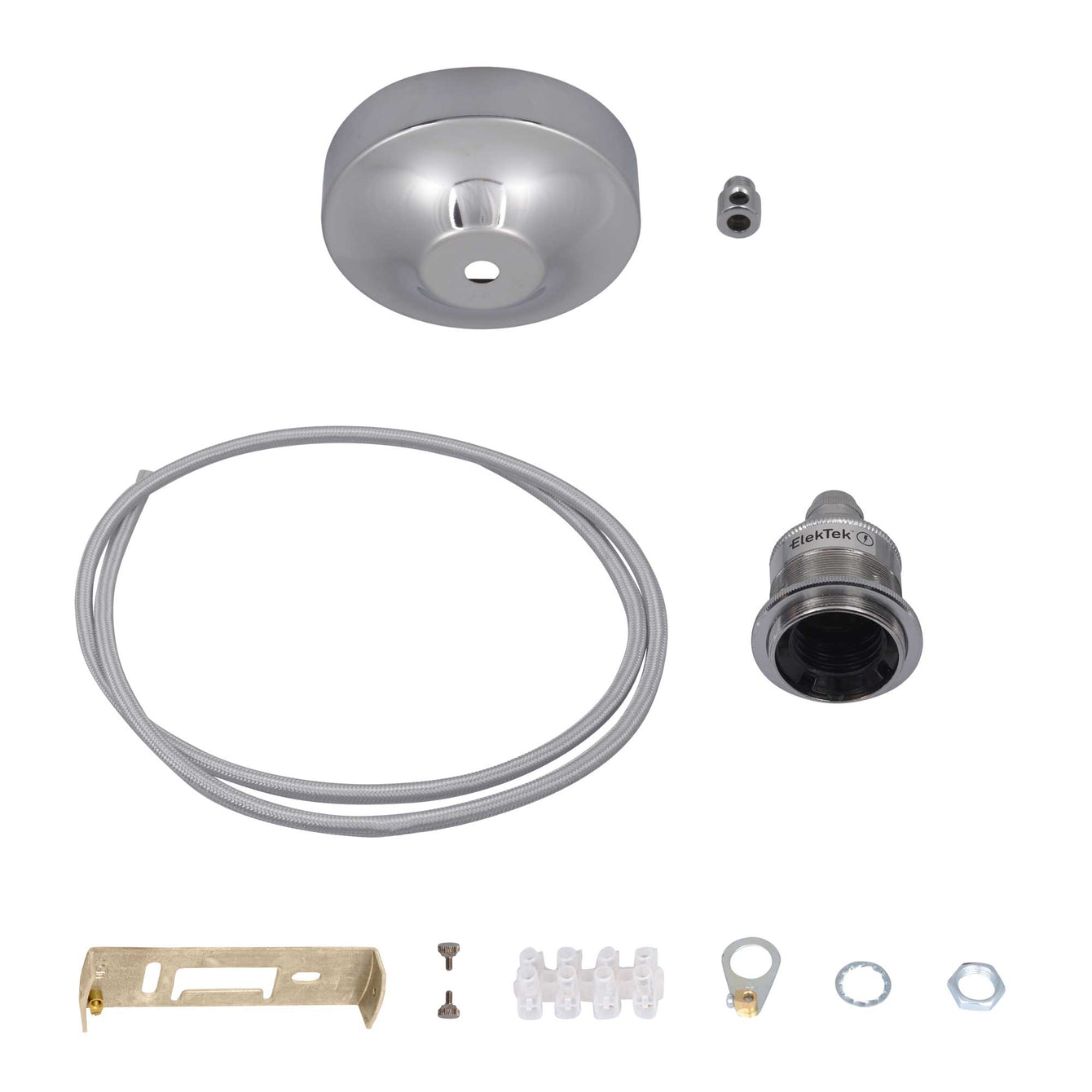

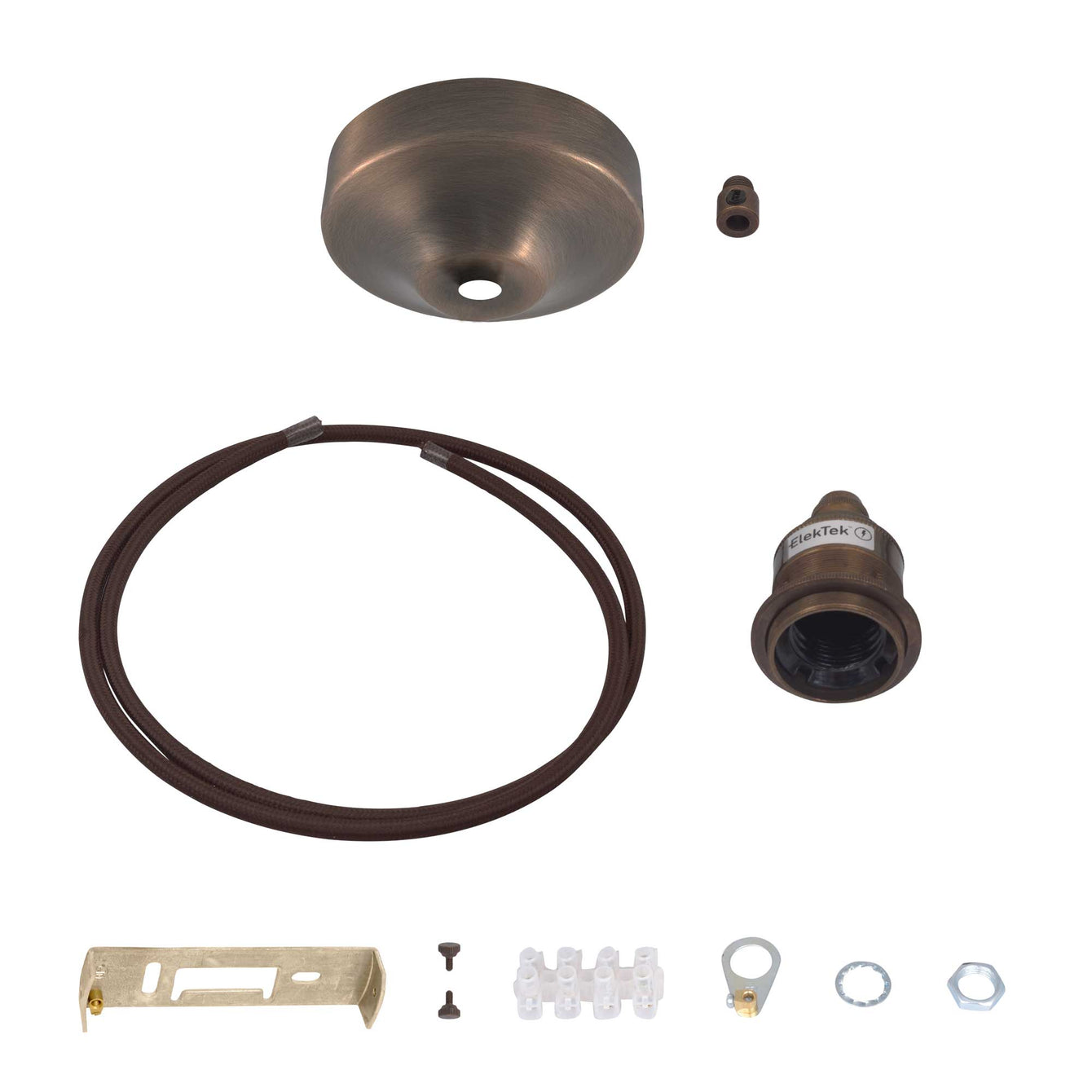

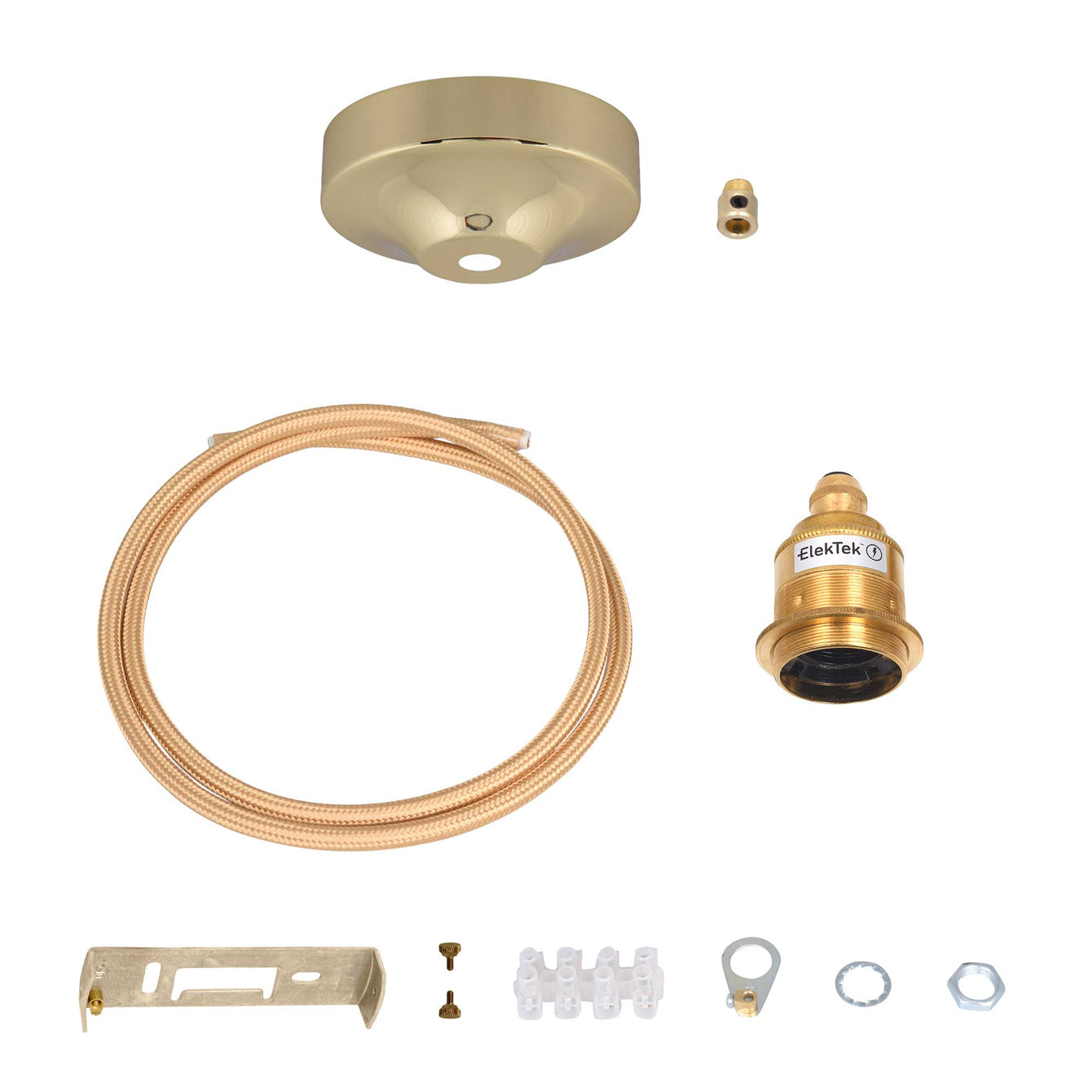

EACH LAMP KIT COMPRISES:

• 100mm convex ceiling rose with cord grip
• 800mm (80cm) Round braided flex
• E27 shade ring lamp holder with pendant cord grip

ElekTek 100mm Diameter Convex Ceiling Rose with Cord Grip

• 100mm diameter, 40mm Depth, 10mm Cord Grip
• 5kg (12lb) capacity
• Fittings kit included - see picture
• Has an easy to install steel fitting strap that fits behind existing ceiling plate and wiring installation (remove break-away steel bar - see picture) using existing fixing screws and holes.
• Made in the UK

This is a ceiling rose that can be fitted over most existing plastic ceiling rose plates without disturbing existing wiring.

When using existing fixing screws, they must be secured into ceiling joist.

The rose is supplied with a complete fitting instructions and fittings kit, including lock nut, grip washer, earth ring and flex tube.

3 Core Round Braided Lighting Flex

• General purpose decorative fabric covered lighting flex
• Conductor section 0.75mm²
• Length supplied 0.8m (80cm)

E27 Shade Ring Lamp Holder Cord Grip

Ideal for creating traditional suspended lamp/bulb arrangements in conjunction with a range of ElekTek Ceiling Roses, Cable and Flex.

• Quality 10mm Entry Threaded Skirt with Shade Ring E27 Earthed Lamp Holder With Cord Locking Clamp.
• Lamp holder Edison Screw ES earthed
• Ideal for vintage look lamps and bulbs
• Solid brass
• Maximum diameter 38.5mm
• Height 66mm
• Threaded Skirt with 48mm diameter Shade Ring
• Matching Cable Grip
• Aperture for Cable/Flex approx 6mm
• For all types of E27 ES Edison 27mm Screw Cap Lamps/Bulbs
• The most common size Edison Screw fitting is this solid brass Edison Screw ES E27 lamp holder and is intended primarily for attachment as a Ceiling Pendant Lamp Holder.
• Made in the UK

Locking body with an M10 10mm threaded entry. Edison Screw ES E27 cap brass earthed lamp holder, with internal locking screw and ceramic interior with brass contacts

Has an internal safety locking screw in the cap to prevent the loosening of the lamp holder after it has been installed. Unlike Cheaper Alternatives.

This product is suitable for lighting circuits only. T2 temperature rating (220°C).

All electrical work should be undertaken by persons competent in the wiring and installation of these items. If in any doubt, please consult a qualified electrician.

All metal electrical fittings must be earthed; all ElekTek products have earth terminals where required.
